2021 Transient Analysis for Detailed Design on Goreway Drive Zone 5 Watermains | Region of Peel, ON, Canada

This project is to conduct a hydraulic transient analysis for the proposed 750 mm diameter Zone 5 (Z5) watermain on Goreway Drive between Castlemore Road and Countryside Drive. The proposed 750 mm watermain will serve as a sub-transmission main and will be constructed of concrete pressure pipe (CPP) across a distance of approximately 3 km from Castlemore Road to Countryside Drive. The project also comprises the design of 300 mm and 200 mm diameter Zone 5 local distribution watermains on Goreway Drive with the lengths of approximately 710 m and 670 m, respectively. However, this transient analysis is limited to the proposed 750 mm sub-transmission main from Castlemore Road to Countryside Drive, and the objectives of the analysis is to:

1.        Evaluate the hydraulic transient-based risks for the sub-transmission main;

2.        Provide the maximum, minimum, and recommended design pressures for the sub-transmission main; and

3.        Confirm the requirements for combination air valves (CAVs) along the sub-transmission main.

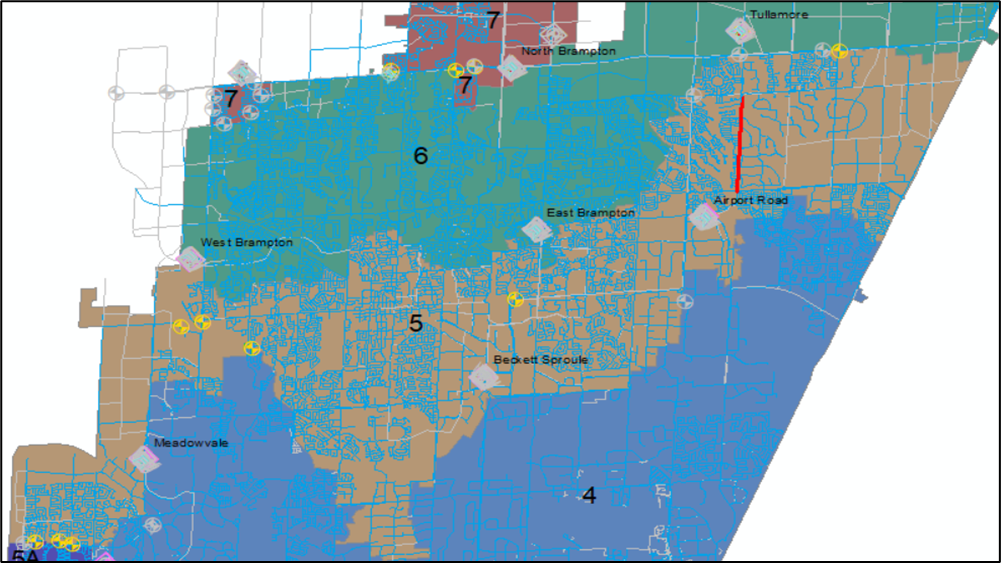

Figure 1: Zone 5 InfoWater hydraulic model showing the proposed 750 mm sub-transmission main

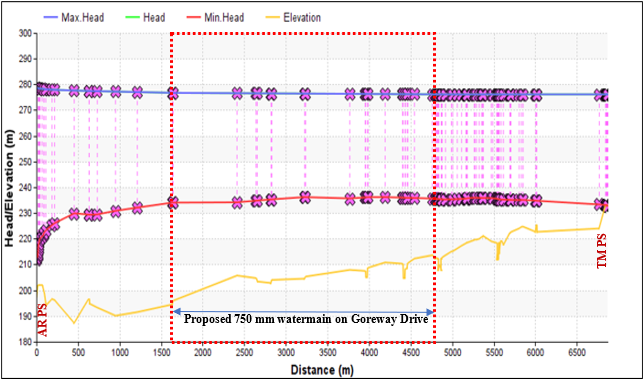

Figure 2: Vertical profile and proposed CAV locations for the 750 mm diameter Zone 5 sub-transmission main (90% design drawings)

Figure 3: Zone 5 profile plotting paths

Figure 4: Scenario 1, Path A – 2021 MHD, LWL-to-HWL, global power failure, no surge protection

Figure 5: Scenario 1, Path B – 2021 MHD, LWL-to-HWL, global power failure, no surge protection
