2021 Hydraulic Analysis for Heritage Road Zone 4 Watermain | Region of Peel, ON, Canada

This project is to conduct a hydraulic analysis for the proposed 600 mm diameter Zone 4 watermain on Heritage Road from Meadowvale Pumping Station (PS) to south of Steeles Avenue West. The proposed 600 mm diameter and 1300 mm long watermain will serve as a sub-transmission main and will be constructed of concrete pressure pipe (CPP). The proposed watermain will connect to the existing 750 mm diameter CPP watermain coming out of Meadowvale PS, existing 300 mm diameter polyvinyl chloride (PVC) watermain on Edgeware Road, and existing 400 mm diameter CPP watermain on Heritage Road south of Steeles Avenue West. The proposed watermain will serve to twin a section of the existing 400 mm diameter watermain on Heritage Road.

The primary objective of the hydraulic analysis is to confirm and verify the proposed diameter for the 600 mm watermain, the location and size of all interconnections and connections, flow rates, operating pressures, and available fire flows. The hydraulic modelling is completed in/via InfoWater and the analysis covers a range of operating scenarios (including variations in current and future demand, storage levels, pumping sources and flows, before and after the proposed 600 mm diameter watermain on Heritage Road, etc.)

Figure 1: Zone 4 InfoWater hydraulic model showing the proposed 600 mm Heritage Road watermain


Figure 2: List of analysis scenarios added to the Region’s InfoWater hydraulic model

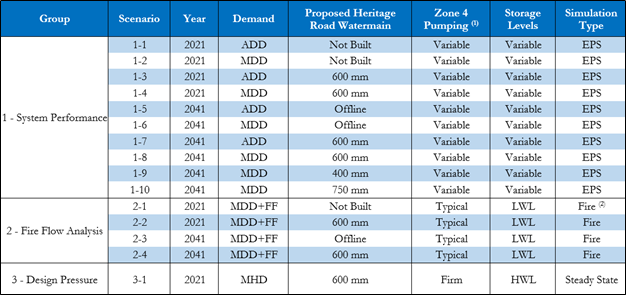

Table 1: Hydraulic analysis groups and scenarios


Figure 3: Maximum EPS pressures (psi) for Scenario 1-1 (2021 ADD before Heritage Road watermain)

Location: Regional Municipality of Peel, ON, Canada
