2020 Hydraulic Analysis for Goreway Drive Zone 5 Watermains | Region of Peel, ON, Canada

This project is to conduct a hydraulic analysis for the proposed 750 mm, 300 mm, and 200 mm diameter Zone 5 watermains on Goreway Drive between Castlemore Road and Countryside Drive. The proposed 750 mm watermain will serve as a sub-transmission main and will be constructed of concrete pressure pipe (CPP) and will span approximately 3,000 m from Castlemore Road to Countryside Drive. The proposed 300 mm watermain is to replace the existing 300 mm ductile iron (DI) watermain on Goreway Drive with a length of approximately 710 m from Countryside Drive to Rosegarden Drive. The proposed 200 mm watermain is to replace the existing 200 mm DI watermain on Goreway Drive with a length of approximately 670 m from 133 m south of Rosegarden Drive to 124 m south of Latania Boulevard.

The primary objective of the hydraulic analysis is to confirm and verify the proposed diameter for the 750 mm sub-transmission main, the location and size of all interconnections and connections, flow rates, operating pressures, and available fire flows. The hydraulic modelling is completed in/via InfoWater and the analysis covers a range of operating scenarios (including variations in current and future demand, storage levels, pumping sources and flows, before and after the proposed 750 mm, 300 mm, and 200 mm diameter watermains on Goreway Drive, etc.)

Figure 1: Zone 5 InfoWater hydraulic model showing the proposed 750 mm Goreway Drive sub-transmission main

Table 1: Hydraulic analysis groups and scenarios


Figure 2: List of analysis scenarios added to the Region’s InfoWater hydraulic model

Figure 3: Maximum pressures for Scenario 1-1 (2021 ADD before Goreway upgrades)

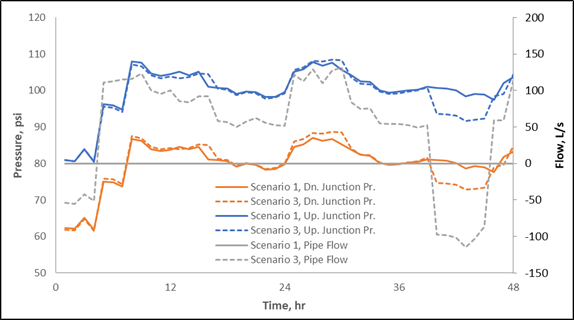

Figure 4: EPS-based pressure and flow series for Scenarios 1-1 and 1-3 (2021 ADD before and after Goreway upgrades


Location: Regional Municipality of Peel, ON, Canada
